Oticon ConnectLine Phone adaptor 2.0

Code: 3OCONPH2

£97.20 (£81.00 ex VAT)

VAT Relief is available if you make a declaration in the Shopping Basket

Choose quantity

Order now for dispatch on Mon 25th Nov.

Description

The Oticon ConnectLine Phone adapter 2.0 is the second generation of ConnectLine phone interface. It is a Bluetooth interface between your conventional landline home phone and the Oticon Streamer 1.4, Ponto Streamer, Streamer Pro or ConnectClip which in effect turns a pair of hearing instruments into a wireless headset. It gives you outstanding sound quality, improved intelligibility and hands free phone use at home.

The Phone Adaptor 2.0 has an advanced noise cancellation system to help control background noise so the person at the other end of the line can clearly hear the voice of the person using the ConnectLine system.

Streamer Pro / ConnectClip purchased separately. For more information, please see 'Associated Items' on right.

Seamless communication

The ConnectLine Phone Adaptor 2.0 connects your hearing aids via a Streamer Pro or ConnectClip to a standard landline phone present in most homes. The result is the ability to communicate with confidence and convenience. There is no need to buy and learn a new phone. Due to advanced noise reduction and echo cancellation systems, you will receive clear undistorted conversations

Ease of use

Plugging in between the main phone (or base station) and the phone wall outlet, the Phone adapter installation is remarkably simple.

Once the Phone Adapter and Streamer Pro or ConnectClip are paired, the devices are automatically ready for use whenever they are within 30 metres of each other. Incoming calls are notified in the hearing instruments and accepted by pushing the Streamer Phone button shortly. Outgoing calls are made by dialing on your phone as normal. The call will transfer automatically to the hearing instruments via Streamer Pro or ConnectClip.

Fashionable design
The Phone adapter not only looks good, it is also compact to discreetly blend in next to phones or base stations.

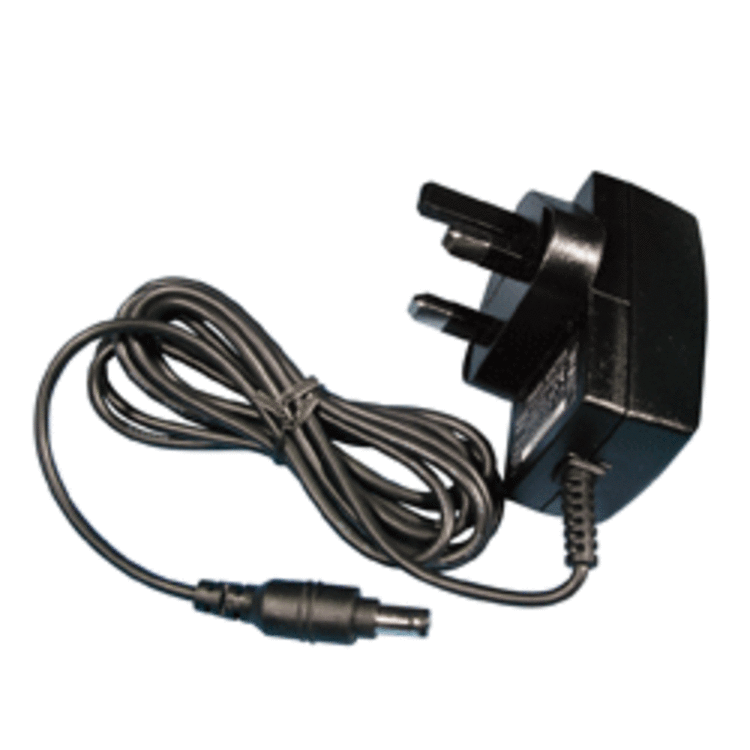

Supplied with: ConnectLine Phone adaptor 2.0, UK mains power supply, BT line cord 2m, BT socket doubler, RJ45 line cord.

Important Note: The Phone Adapter will not work with office phone systems, it can only be used with a traditional, domestic phone line.

Oticon part number: 127837

Details

Technical data Phone Adaptor 2.0
Dimensions 124 x 80 x 21 mm
Weight 100g
Power consumption Max. 190 mA (using the included power supply)
Compatibility Streamer 1.2 or later, Ponto Streamer and Streamer Pro
Bluetooth compliance Ver. 2.0
Bluetooth Profile support Headset Profile (HSP) 1.0
Headset in Max 6dBmV(RMS), 10 K?
Headset out -15 — -10dBmV(RMS), 10 -100 ?
Frequency 80 Hz - 3.5 kHz (wireless)
ConnectLine system features AutoConnect: Will automatically connect to the Streamer when in range. AutoPriority: Incoming calls will be prioritized over e.g. TV sound. Proximity pairing: The phone adapter will automatically pair to the Streamer if the Streamer is in pairing mode.
Connections phone line in/out for interface to (analogue) landline home phone (PSTN) (RJ11/RJ11). ConnectLine in/out for direct interface to e.g. computer1 or for interface to ConnectLine office phone kit2 ( 3.5 mm mini jack)
Range Up to 30 meters with Streamer Pro (free line of sight)
AutoConnect (range) Yes (30 meters)
Audio Quality Mono / 8 kHz sample frq
Audio Bandwidth License free 2,4 GHz (ISM band)
Emissions Max. 39 dB?V/m @ 3 meters. In compliance with all relevant standards
Operating temperature 10 - 40 °C
Storage temperature -20 - 70 °C

Streamer compatible Oticon hearing instruments always have a program for Streamer phone applications. The dedicated streamer phone program is automatically activated by the hearing instrument as soon a phone conversation is started through the Streamer. During phone listening, the hearing instrument microphones are normally turned on (unless temporarily muted by the user). The sound level of the microphones (i.e. acoustic input from surroundings) can be muted by the user or can be attenuated relatively to the phone sound - please talk to your audiologist for more information about this.
